M236HVR01. Nws nta kev ua haujlwm kub ntawm 0 ~ 5 0 degree, qhov ntsuas kub ntawm 0 ~ 65 degree . Nws cov yam ntxwv dav dav tau sau los ntawm MagicSCM hauv cov hauv qab no: Curved Display, 165Hz, Matte, 1500R. Raws li nws cov yam ntxwv, MagicSCM pom zoo kom cov qauv no siv rau Desktop Monitor, Gaming thiab lwm yam.Built-in 6 qhov chaw chips tsav IC. Raws li cov ntaub ntawv khaws cia hauv MagicSCM cov qauv tsim khoom loj ntawm Q1, 2020, Tam sim no cov qauv no tau tsim tawm. Muaj 7 yam khoom Tshuag thiab 3 tus neeg muag khoom ntawm tus qauv no ntawm MagicSCM. Peb tau sau cov qauv no cov lus qhia tshwj xeeb rau lub Peb Hlis 11 2021 thawj zaug, thiab qhov hloov tshiab kawg rau lub Yim Hli 5 2021. Yog tias koj xav embed CELL hauv koj cov khoom lag luam yav tom ntej, MagicSCM xav kom koj yuav tsum tiv tauj nrog AUO lossis nws yog tus neeg sawv cev kom paub cov khoom tsim tawm tshiab thiab cov ntsiab lus nthuav dav ntawm M236HVR01.0 CELL. Cov xwm txheej ntau lawm cim rau MagicSCM.com yog rau kev siv nkaus xwb thiab yuav tsum tsis txhob siv los ua lub hauv paus rau tus neeg siv kev txiav txim siab. Tag nrho cov lus qhia tshwj xeeb yog nkag los ntawm MagicSCM engineers raws li datasheet, tab sis tej zaum yuav ua yuam kev thaum lub sij hawm inputting.
|
Chaw tsim tshuaj paus |
AUO |
Qauv Lub Npe |
M236HVR01.1 CELL |
|
Qhov Loj |
23.6 hli |
Hom npo |
CELL, a-Si TFT-LCD |
|
Pixel Number |
1920 (RGB) x 1080 (FHD) 93 PPI |
Kev npaj |
RGB Vertical Stripe |
|
Chaw Ua Haujlwm (mm) |
521.395 x 293.285 (HxV) |
Daim ntawv qhia (mm) |
531.9 X 304.9 x 1.11 (HxVxD) |
|
Bezel cheeb tsam (mm) |
Kev kho mob |
Antiglare (Haze 40%), Hard txheej (3H) |
|
|
Luminance |
0 cd/m2 |
Qhov sib piv piv |
3000: 1 (Typ.) (TM) |
|
Saib lub kaum sab xis |
89/89/89/89 (Tib.) (CR210) |
Teb |
20 (Typ.) (G to G) ms |
|
Zoo Saib ntawm |
Symmetry |
Hom haujlwm |
VA, Feem ntau Dub, Transmissive |
|
iav Thickness |
0 40+0.40mm |
Kev sib kis |
3.4% (Hom.) (nrog Polarizer) |
|
Xim Qhov tob |
16.7M 69% NTSC |
Backlight |
Tsis muaj B/L |
|
Pawg |
530g (Tib.) |
Siv rau |
|
|
Refresh Rate |
60 Hz |
Touchscreen |
Tsis muaj |
|
IC daim ntawv tsav tsheb |
Built-in COF 6 qhov chaw chips |
||
|
Hom teeb liab |
LVDS (2 ch, 8-ntsis), 30 pins Connector |
||
|
Kev siv hluav taws xob |
12.0V (Typ.) |
||
|
Max. Kev ntsuas |
Cia Temp.: {{0}} ~ 65 degree Kev khiav hauj lwm Temp.: 0 ~ 50 degree |
||

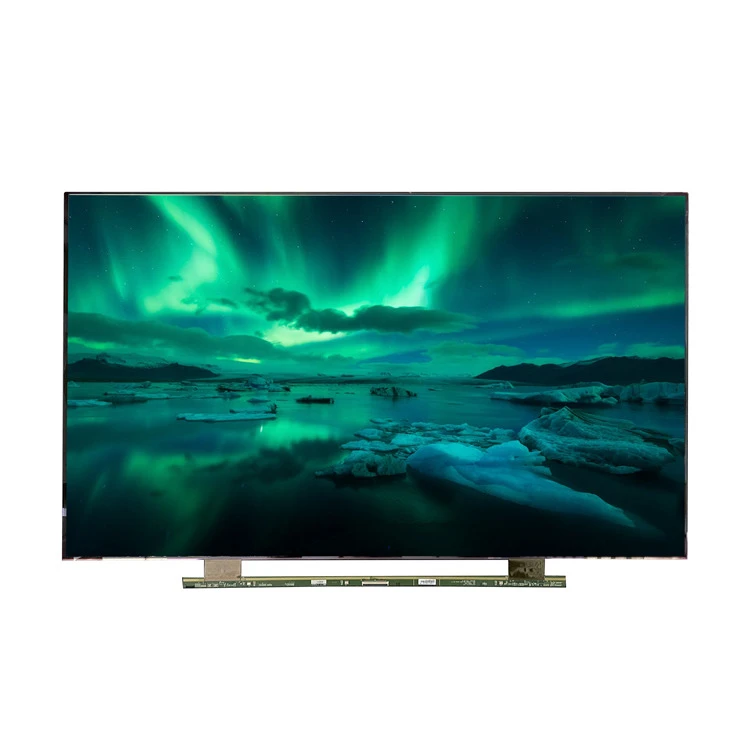

AU Optronics Corp. (tom ntej no hu ua AUO) M236HVR01.1 CELL (Alias: 91.23M08.100) yog 23.6 nti kab pheeb ces kaum a-Si TFT-LCD zaub screen khoom, tsis muaj backlight, tsis muaj kov screen. Raws li cov ntaub ntawv nrog cov version ntawm Ver0.2 uas tau tso tawm rau ntawm 7 1 2019, M236HVR01.1 CELL txhawb nqa zaub 1920 (RGB) × 1080 (FHD) nrog qhov sib piv ntawm 16: 9 (W: H), uas nws pixels yog teem rau hauv RGB Vertical Stripe. Raws li kev paub txog txhua yam, nws muaj thaj chaw ua haujlwm ntawm 521.395 (W) × 293.285 (H) mm, nthuav dav ntawm 531.9 (W) × 304.9 (H) × 1.11 (D) mm, nrog rau saum npoo ntawm Antiglare (Haze 40%) , Hard txheej (3H), net hnyav ntawm 530g (Typ.), siv 0.40+0.40 hli hli phaj. Raws li VA, Nquag Dub, Transmissive CELL khoom, M236HVR01.1 CELL tuaj yeem muab 3000: 1 transimissive contrast ratio, 89/89/89/89 (Typ.) (CR Ntau dua lossis sib npaug rau 10) (L / R / U /D) saib lub kaum sab xis, pom qhov zoo tshaj plaws ntawm Symmetry, thiab lub sij hawm teb ntawm 20 (Typ.) (G to G) ms. Grey nplai lossis qhov ci ntawm lub sub-pixel yog txiav txim siab nrog 8-me ntsis grey nplai teeb liab rau txhua qhov chaw, yog li nthuav tawm palette ntawm 16.7M xim, kuj nrog kev ua haujlwm ntawm cov xim gamut 69% (NTSC). Cov khoom no tsis muaj backlight. M236HVR01.1 CELL siv LVDS (2 ch, 8-ntsis) raws li nws yog lub teeb liab inputting systterm, uas txuas nrog 30 pins Connector nrog lub hwj chim mov voltage ntawm 12.0V (Typ.). Nws yog ib txwm ntsug ncej tus nqi (Fv) yog 60Hz. Yog xav paub ntxiv txog cov khoom tshiab tshiab ntawm M236HVR01.1 CELL Peb xav kom koj yuav tsum xa mus rau cov ntaub ntawv teev tseg ntawm MagicSCM.com lossis tiv tauj AUO lossis nws yog tus xa khoom.
M236HVR01.3 CELL yog 23.6 nti kab pheeb ces kaum a-Si TFT-LCD zaub vaj huam sib luag khoom los ntawm AU Optronics Corp. (tom qab hu ua AUO), tsis muaj lub teeb nraub qaum, tsis muaj lub vijtsam kov. Nws muaj qhov ua haujlwm kub ntawm 0 ~ 50 degree, qhov ntsuas kub cia ntawm -20 ~ 60 degree . Nws cov yam ntxwv dav dav tau sau los ntawm MagicSCM hauv cov hauv qab no: Curved Display, 120Hz, Matte, R1500, L Angle. Raws li nws cov yam ntxwv, MagicSCM pom zoo kom cov qauv no siv rau Desktop Monitor, Gaming thiab lwm yam. Built-in 6 qhov chaw chips tsav IC. Raws li cov ntaub ntawv khaws cia hauv MagicSCM cov qauv tsim khoom loj ntawm Q4, 2019 thiab xa khoom kawg ntawm Q4, 2021, Tam sim no cov qauv no tau txiav tawm. Muaj 0 yam khoom Tshuag thiab 1 tus neeg muag khoom ntawm tus qauv no ntawm MagicSCM. Peb tau sau cov qauv no cov lus qhia tshwj xeeb rau lub Peb Hlis 11 2021 thawj zaug, thiab qhov hloov tshiab kawg rau Lub Ob Hlis 24 2022. Yog tias koj xav embed M236HVR01.3 CELL CELL hauv koj cov khoom lag luam yav tom ntej, MagicSCM xav kom koj yuav tsum tiv tauj nrog AUO lossis nws yog tus neeg sawv cev los kawm txog cov khoom tsim tawm tshiab thiab nthuav dav. M236HVR01.3 CELL cov xwm txheej tsim khoom tau cim rau MagicSCM.com yog rau kev siv nkaus xwb thiab yuav tsum tsis txhob siv los ua lub hauv paus rau tus neeg siv kev txiav txim siab. Tag nrho cov lus qhia tshwj xeeb yog nkag los ntawm MagicSCM engineers raws li cov ntaub ntawv, tab sis peb tsis tuaj yeem lav qhov spec teev yog tag nrho.

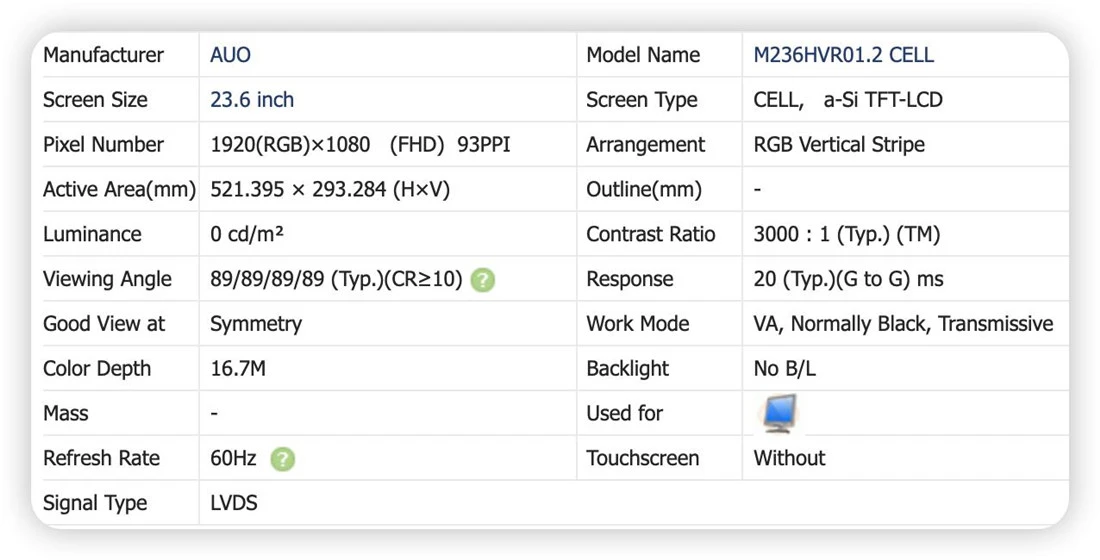

M236HVR01.2 CELL yog 23.6 nti kab pheeb ces kaum a-Si TFT-LCD zaub vaj huam sib luag khoom los ntawm AU Optronics Corp. (tom qab no hu ua AUO), tsis muaj backlight, tsis muaj kov npo. Nws cov yam ntxwv dav dav tau sau los ntawm MagicSCM hauv cov hauv qab no: Curved Display, R1500, R Angle / SNB. Raws li nws cov yam ntxwv, MagicSCM pom zoo kom cov qauv no siv rau Desktop Monitor thiab lwm yam khoom xa tuaj zaum kawg ntawm Q2, 2021, Tam sim no cov qauv no raug txiav lawm. Muaj 2 yam khoom Tshuag thiab 1 tus neeg muag khoom ntawm tus qauv no ntawm MagicSCM. Peb tau sau cov qauv no cov lus qhia tshwj xeeb rau lub Plaub Hlis 14 2020 thawj zaug, thiab qhov hloov tshiab kawg rau Lub Yim Hli 5 2021. Yog tias koj xav embed M236HVR01.2 CELL CELL hauv koj cov khoom lag luam yav tom ntej, MagicSCM xav kom koj yuav tsum tiv tauj nrog AUO lossis nws yog tus neeg sawv cev los kawm txog cov khoom tsim tawm tshiab thiab cov ntsiab lus nthuav dav. M236HVR01.2 CELL cov xwm txheej tsim khoom tau cim rau MagicSCM.com yog rau kev siv nkaus xwb thiab yuav tsum tsis txhob siv los ua lub hauv paus rau tus neeg siv kev txiav txim siab. Cov kev txwv saum toj no tsis yog los ntawm cov ntaub ntawv, tsuas yog siv, thov siv ceev faj!

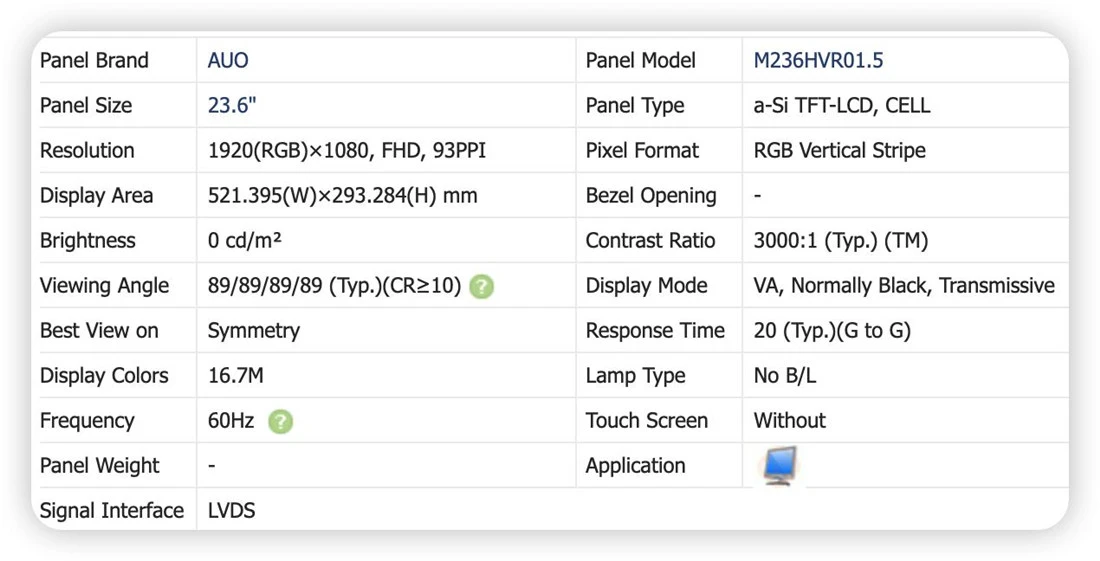

AU Optronics Corp. (tom qab no hu ua AUO) M236HVR01.5 yog 23.6 nti kab pheeb ces kaum a-Si TFT-LCD zaub vaj huam sib luag khoom, tsis muaj backlight, tsis kov npo. Nws cov yam ntxwv dav dav tau sau los ntawm MagicSCM hauv cov hauv qab no: Curved Display, R1000. Raws li nws cov yam ntxwv, MagicSCM pom zoo kom cov qauv no siv rau Desktop Monitor thiab lwm yam. Tam sim no cov qauv no raug txiav lawm. Muaj 0 yam khoom Tshuag thiab 0 tus neeg muag khoom ntawm tus qauv no ntawm MagicSCM. Peb tau sau cov qauv no cov lus qhia tshwj xeeb rau lub Plaub Hlis 7 2021 thawj zaug, thiab qhov hloov tshiab kawg rau lub Yim Hli 5 2021. Yog tias koj xav embed M236HVR01.5 CELL hauv koj cov khoom lag luam yav tom ntej, MagicSCM xav kom koj yuav tsum tiv tauj nrog AUO lossis nws yog tus xa khoom kom paub cov khoom tsim tawm tshiab thiab cov ntsiab lus nthuav dav. M236HVR01.5 cov xwm txheej tsim khoom tau cim rau MagicSCM.com yog rau kev siv nkaus xwb thiab yuav tsum tsis txhob siv los ua lub hauv paus rau tus neeg siv kev txiav txim siab. Cov kev txwv saum toj no tsis yog los ntawm cov ntaub ntawv, tsuas yog siv, thov ceev faj ntawm kev siv!
Lub vev xaib Tshuag qauv hloov tshiab tsis raws sijhawm, yog tias koj tsis pom cov qauv vaj huam sib luag koj xav tau hauv cov npe khoom, lossis muaj lus nug, thov koj xav tiv tauj peb.
